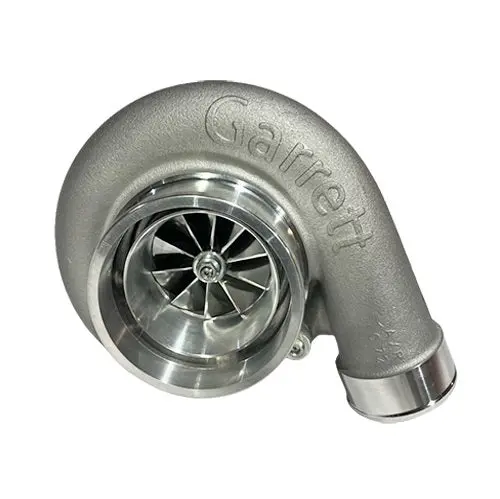

Garrett Full-Billet Turbocharger with T3 Undivided Turbine Housing (.82 A/R)

Description

Product Description:

• GARRETT Club Line GBC35-700 (58mm Comp Wheel) Turbo with T3 Open (Undivided) .82 A/R Turbine housing with 3” GT V-Band exit flange.

Product Features:

• The Garrett GBC35-700 turbocharger is a high performance journal bearing product in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger
• Billet compressor wheel with extended tip design for higher pressure ratios
• 58mm compressor wheel with GTX Gen II compressor aerodynamics
• Journal bearing rotating group with 360-degree thrust bearing
• Outline interchangeable with GBC37-900 for stage upgrades
• Machined boost signal port with installed plug
• Modern turbine wheel aerodynamics
• Oil-cooled center housing

Product Specifications:

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
