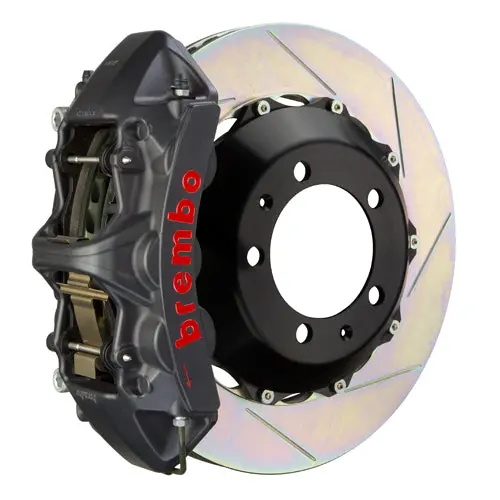

Brembo GTS Front Big Brake Kit: 6-Piston Cast Monobloc Calipers with 380x32mm Two-Piece Rotors (Street-Sport)

Price range: $92.39 through $92.97

Quantity
SKU: N/A Category: Brand:

Description

Free Shipping to Lower 48 States
PN: GT-S-1M-.9016A

Cross Drilled

  • Black Hard Anodized1M1.9016AS
 TY1

  • Black Hard Anodized1M2.9016AS
TY3

  • Black Hard Anodized1M3.9016AS

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture’s System – Advantages far beyond What’s simply known as “Big Brakes”. As the braking system’s primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.
The most popular High Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Discs are available in cross-drilled or slotted designs.

Product Overview

Product Description: (F) 6-Piston Cast Monobloc Calipers | 380x32mm (15”) 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment:How to Measure Wheels for Required Clearance
Brake Profile Cross Section
Front or Rear System Shown: Front
Intended Use:
System Dynamics:

Caliper

Caliper Body: Cast Monobloc Radial MountCaliper Piston Configuration: 6-PistonCaliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert

Disc

Disc Type: Cross Drilled / TY1 / TY3Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant PlatingDisc Diameter: 380mmDisc Width (Measurement): 32mmDisc Air Gap (Measurement): 16mmDisc Annulus (Measurement): 54mmDisc Construction: 2-Piece Disc AssemblyDisc Vane Design (Measurement): Vented Curved 48 VaneDisc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000Pad Volume / Surface Area: 94.5 | 84

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by GoodridgeMounting Hardware: Brembo Engineered CNC Billet Caliper Adapters – All Necessary Hardware Included For Ease of Installation


Application:

  • 2002 – 2005 Carrera 996 GT2
  • 2002 – 2005 Carrera 996 GT3

      WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

      Explore more from our collection.

      Additional information

      Rotor Type

      Cross Drilled, Type 1, Type 3
