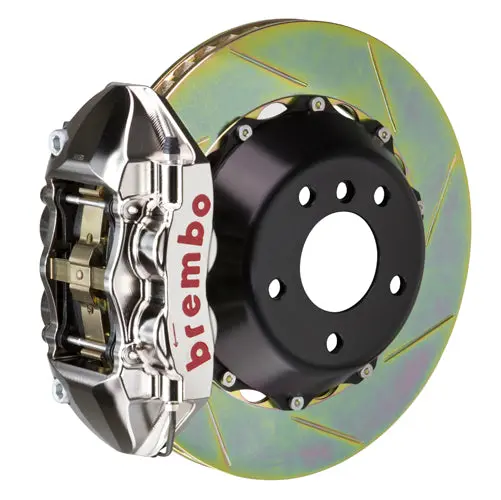

Brembo Gtr Big Brake System | (R) 4-Piston Billet Monobloc Calipers | 345X28mm (13.6″) 2-Piece Discs – Rear

Price range: $92.52 through $92.94

Quantity
SKU: N/A Category: Brand:

Description

Free Shipping to Lower 48 States

PN: GT-R-2P-.8019A

Cross Drilled

  • Nickel Plated2P1.8019AR
 TY1

  • Nickel Plated2P2.8019AR
TY3

  • Nickel Plated2P3.8019AR

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture’s System – Advantages far beyond What’s simply known as “Big Brakes”. As the braking system’s primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.
This is the ultimate system intended to be used on the street or track, yet it can be a very potent race system without compromising overall streetability: none of the noise or comfort issues of a race system, yet the qualities of a race caliper such as the strength of billet monobloc construction and corrosion resistance of nickel plating.

Product Overview

Product Description: (R) 4-Piston Billet Monobloc Calipers | 345x28mm (13.6″) 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment:How to Measure Wheels for Required Clearance
Brake Profile Cross Section
Front or Rear System Shown: Rear
Intended Use:
System Dynamics:

Caliper

Caliper Body: Billet Monobloc Radial MountCaliper Piston Configuration: 4-PistonCaliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc

Disc Type: Cross Drilled / TY1 / TY3Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant PlatingDisc Diameter: 345mmDisc Width (Measurement): 28mmDisc Air Gap (Measurement): 16mmDisc Annulus (Measurement): 54mmDisc Construction: 2-Piece Disc AssemblyDisc Vane Design (Measurement): Vented Curved 48 VaneDisc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by GoodridgeMounting Hardware: Brembo Engineered CNC Billet Caliper Adapters – All Necessary Hardware Included For Ease of Installation


Application:

  • 1995 – 1998 Carrera C2 / C4
  • 1995 – 1998 Carrera C4S / Turbo

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Explore more from our collection.

Additional information

Rotor Type

Cross Drilled, Slotted, Type 3

Color

Nickel Plated with Red Lettering
