Brembo GT Rear Big Brake Kit: 4-Piston Monobloc Calipers with 345x28mm Two-Piece Rotors (Upgraded Variant)

Price range: $92.01 through $92.98

Quantity
SKU: N/A Category: Brand:

Description

Free Shipping to Lower 48 States

PN: GT-2P-.8001A

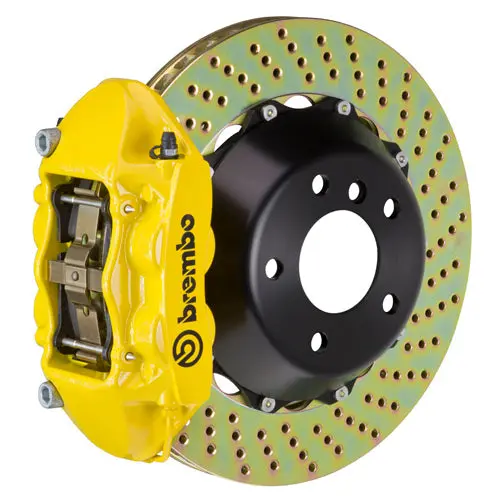

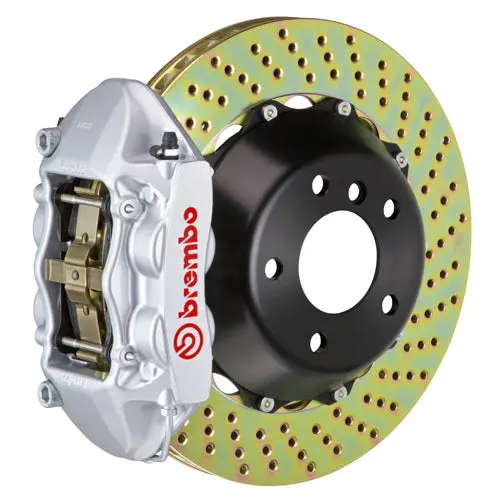

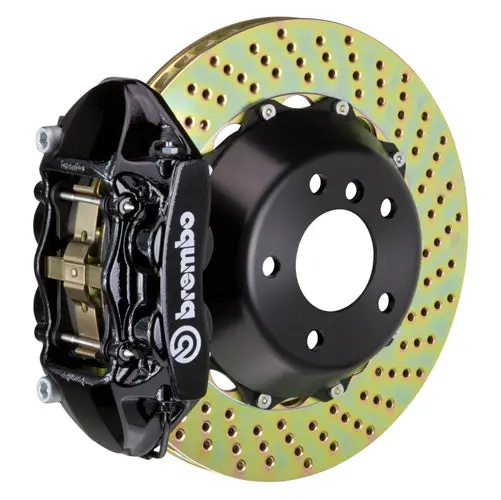

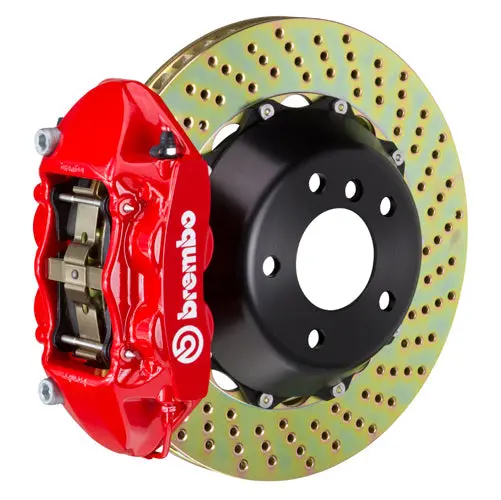

Cross Drilled

  • Red2P1.8001A2
  • Black2P1.8001A1
  • Silver2P1.8001A3
  • Yellow2P1.8001A5

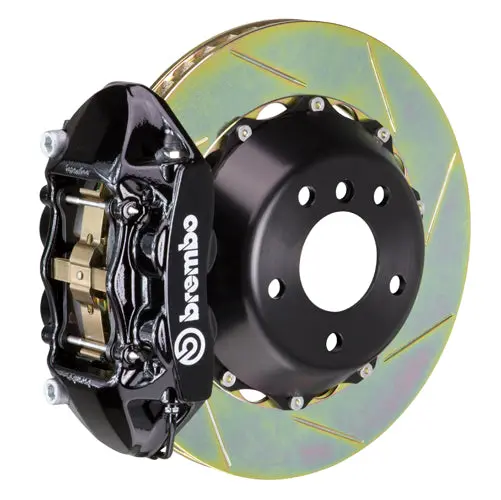

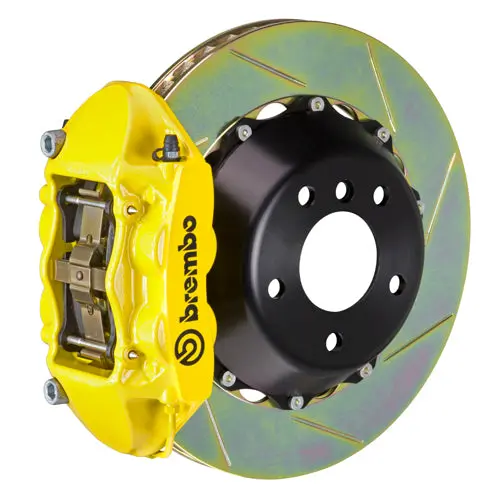

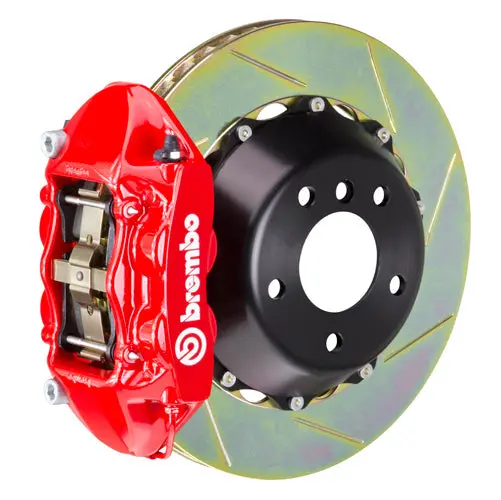

 TY1

  • Red2P2.8001A2
  • Black2P2.8001A1
  • Silver2P2.8001A3
  • Yellow2P2.8001A5

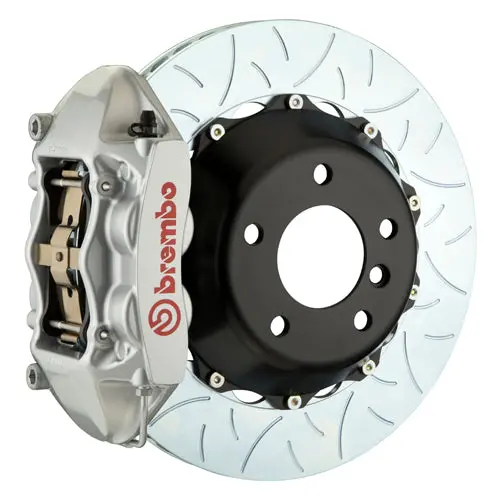

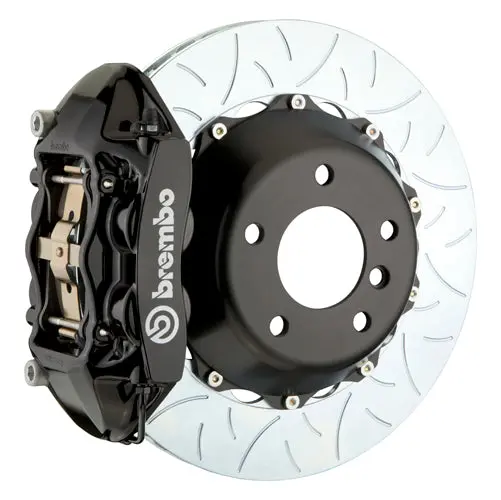

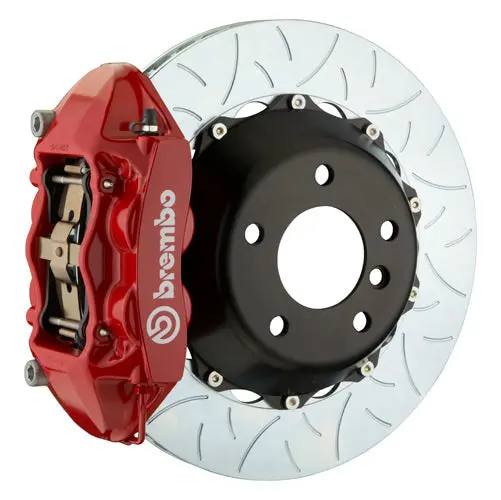

TY3

  • Red2P3.8001A2
  • Black2P3.8001A1
  • Silver2P3.8001A3
  • Yellow2P3.8001A5

The Brembo Gran Turismo High Performance Braking System Offers Significant Advantages over the OE Manufacture’s System – Advantages far beyond What’s simply known as “Big Brakes”. As the braking system’s primary function is to dissipate heat, larger, more sophisticated discs are used in order to increase the fade resistance of the system. These discs are directionally vented for enhanced cooling, as well as drilled or slotted for improved consistency, continuously cleaning and refreshing the pad surface.

The most popular High-Performance system for street to track. Systems come with opposed piston calipers and are designed for high thermal resistance and precise brake modulation. Lightweight 2-piece discs increase thermal capacity to dramatically reduce brake fade and are available in cross- drilled or slotted designs.


Product Overview

Product Description: (R) 4-Piston Monobloc Calipers | 345x28mm (13.6″) 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
Wheel Fitment:How to Measure Wheels for Required Clearance
Brake Profile Cross Section
Front or Rear System Shown: Rear
Intended Use:
System Dynamics:Notes: For applications for PCCB equipped models, please contact your distributor

Caliper

Caliper Body: Cast Monobloc Radial MountCaliper Piston Configuration: 4-PistonCaliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

Disc

Disc Type: Cross Drilled / TY1 / TY3Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant PlatingDisc Diameter: 345mmDisc Width (Measurement): 28mmDisc Air Gap (Measurement): 16mmDisc Annulus (Measurement): 54mmDisc Construction: 2-Piece Disc AssemblyDisc Vane Design (Measurement): Vented Curved 48 VaneDisc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by GoodridgeMounting Hardware: Brembo Engineered CNC Billet Caliper Adapters – All Necessary Hardware Included For Ease of Installation

Application:

  • 1999 – 2004 Carrera 996 C2
  • 1999 – 2004 Carrera 996 C4
  • 2001 – 2004 Carrera 996 C4S
  • 2002 – 2004 Carrera 996 Turbo (Excluding PCCB)
  • 2002 – 2005 Carrera 996 Turbo (PCCB Equipped)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Explore more from our collection.

Additional information

Rotor Type

Cross Drilled, Type 1, Type 3

Caliper Color

Red with White Lettering, Black with White Lettering, Silver with Red Lettering, Yellow with Black Lettering
